| 序号 | 项目（project） | 单位（unit） | JHYLB-50 | JHYLB-60 | JHYLB-80 | JHYLB-100 | JHYLB-120 | JHYLB-150 |
| 1 | 装载能力 Loading capacity |
m³/h | 50 | 60 | 80 | 100 | 120 | 150 |
| 2 | 整机质量 The weight |
kg | 5380 | 5380 | 5750 | 6200 | 7200 | 8600 |
| 3 | 转弯半径下限 Turning radius |
mm | ≤ 4000 | ≤ 4000 | ≤ 4000 | ≤ 4200 | ≤ 4500 | ≤ 5000 |

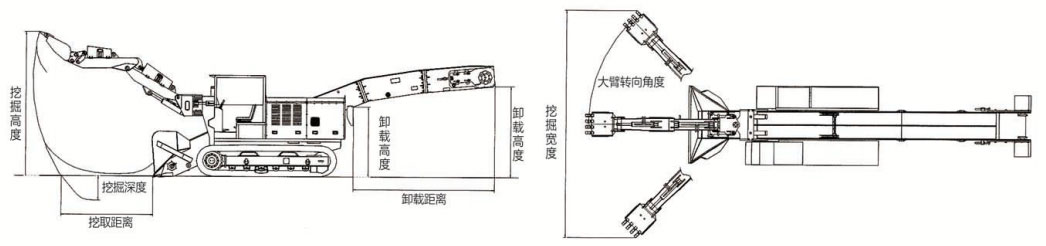

| 4 | 挖掘宽度 Mining width |
mm | ≥2800 | ≥2800 | ≥2800 | ≥3200 | ≥3500 | ≥4000 |
| 5 | 挖掘高度 Mining height |
mm | ≥1600 | ≥1600 | ≥1600 | ≥1800 | ≥2000 | ≥3000 |
| 6 | 挖掘深度 Digging depth |
mm | ≥400 | ≥400 | ≥400 | ≥800 | ≥800 | ≥1000 |
| 7 | 挖取距离 Harvest distance |
mm | ≥1600 | ≥1600 | ≥1600 | ≥1600 | ≥2000 | ≥2500 |
| 8 | 卸载高度 Discharge height |
mm | ≥1500(可加高) | ≥1500(可加高) | ≥1600(可加高) | 1600(可加高) | 1800(可加高) | 2000(可加高) |
| 9 | 卸载距离 Uninstall the distance |
mm | ≥1500(可加长) | ≥1500(可加长) | ≥1600(可加长) | 2000(可加长) | 2000(可加长) | 2000(可加长) |
| 10 | 爬坡能力 Climbing ability |
° | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 |
| 11 | 输送带速度 Belt speed |
m/s | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| 12 | 行走速度 Walking speed |
km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| 13 | 离地间隙下限 Clearance from the ground |
mm | ≥200 | ≥200 | ≥220 | ≥250 | ≥320 | ≥350 |
| 14 | 履带平均接地比压 Ground pressure |
MPa | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 |
| 15 | 额定工作压力 Rated working pressure |
MPa | 20 | 20 | 20 | 20 | 20 | 20 |
| 16 | 安全阀开启压力 Relief valve opening pressure |
MPa | 24 | 24 | 24 | 24 | 24 | 24 |
| 17 | 电机总功率 Total motor power |
Kw | 22 | 22 | 34 | 37 | 45 | 45 |
| 18 | 外形尺寸(长×宽×高) Overall dimensions |
mm | 5300×1600×1700 | 5300×1600×1700 | 5600×1800×1800 | 6200×1800×1800 | 6200×1980×1980 | 6200×1980×1980 |
